| General description | - The waterjet cutting
technology
is used for a very wide range of cutting applications. Therefore exist
a large variety of available waterjet cutting systems:
- 1D slitter systems for
cutting web material
- 2D cutting tables for
cutting sheet material (cutting head moves along the x-, y- and z-axis
(height adjustable))
- 3D robot applications
for complex three dimensional outlines
- Further customized
solutions
|
|---|
Description waterjet cutting
systems at
6200
bar | - Compared to conventional
waterjet cutting at 4100 bar, the increased maximum pressure range
features the following benefits:
- Higher cutting speeds
- Improved cutting edge
quality
- Lower abrasive
consumption
- Higher productivity
- Optimized machine
utilization
- Improved conformality
- Reduced delamination
|
|---|
Description
High pressure pump
SL-VI PRO-III | - With
its PRO high pressure waterjet cutting technology, KMT Waterjet Systems
sets new standards in the field of waterjet cutting with operating
pressures up to 6200 bar.
- The
PRO series by KMT products were designed to ensure economical operation
with enhanced service life and offer optimized high pressure equipment
with highest requirements as regards reliability and cutting quality in
heavy-duty continuous operation.
- The
high pressure pumps of the STREAMLINE PRO series have significantly
enhanced the productivity and efficiency of the waterjet cutting
technology. The innovative high pressure pumps have been
designed for both pure water and abrasive waterjet cutting at operating
pressures of up to 6200 bar.
- The STREAMLINE PRO-III
line is available in two models with 45 kW and 93
kW. At a
pressure of 6200
bar, the two versions offer volumetric flows of 2,8 l/ min and
5,8 l/ min respectively. This enables the operator to cut with either
single or multiple heads.
|
|---|
Technical details

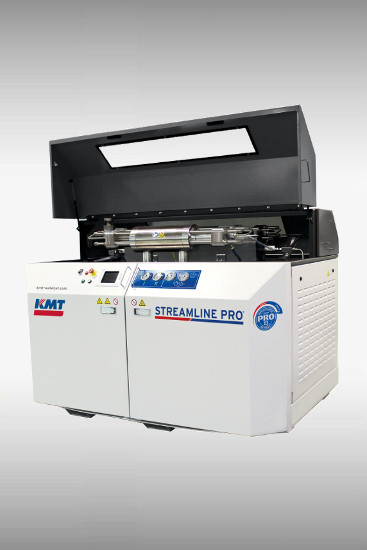

STREAMLINE
SL-VI
125 PRO-III | - You
will find the most important technical data as follows:
| Physical quantity | Value |
|---|
| Engine power | 93kW / 125 hp | | Pressure range | 800- 6200 bar | | Max. flow rate at max.
pressure | 6,0 l/ min | | Length | 2238 mm | | Width | 1500 mm | | Height | 1552 mm | | Weight | 3107 kg |
|
|---|
| Cutting water circuit | | Intensifier design | PRO-III | | Intensifier system | Dual | | Intensification ratio | 38,5: 1 | | Max. stroke rate | 2x 54 1/min | | Attenuator volumen | 1,6 l | | Cutting water inlet
pressure | 2,4- 5,5 bar | | Min.
cutting water inlet flow | 24 l/ min | | Low pressure filter | 10 micrometer abs. |
|
|---|
| Maximal number of orifices at
maximal pressure | - The actual number of
orifices depends on quality and wear of the orifies and may deviate
from the given values minimally. ( 1) This orifice size is
used for pure water cutting only.)
| Nozzle diameter in
mm | number |
|---|
| 0,10 1) | 15 | | 0,12 1) | 10 | | 0,15 1) | 7 | | 0,17 | 5 | | 0,20 | 3 | | 0,25 | 2 | | 0,30- 0,38 | 1 |
|
|---|
| Controls and electrics | | Control system | Eaton Moeller | | User control display | 5,7 '' Color
Touchscreen | | Number of display
languages | 11 | | Motor start-up | Softstarter | | Nominal current at 400V/
50
Hz | 158 A | | Fuse size at 400V/ 50 Hz | For the necessary fuse
size please adhere to your local requirements |
|
|---|
| Pneumatic, Hydraulics and
cooling system | - Hydraulic tank capacity:
416 l
- Oil level and
temperature control (sensor)
- Oil/ water heat exchanger
- Oil/ air cooler
(optional)
|
|---|
Standard features
and options | - High pressure transducer
- Proportional control
- Cutting water inlet
shut-off valve
- Safety dump valve
- Adjustable booster pump
- Oil drip pan
- Control cabinet
- Electrical control system
- Top cover
|
|---|
| Others | - Label according to
EC-machinery directive: CE mark
- Max. sound level: <82
dB(A)
|
|---|
| Shipping Conditions | - One high pressure pump
SL-VI 125 PRO-III as described.
- A VAT
invoice is included in every sale (EU).
- Free
shipment to EU countries
- For
deliveries to non-EU countries, please
contact us and
send your
delivery address for exact shipping quotes. Before bidding
you must have a positive feedback and a confirmed address from us.
|
|---|
