Replacement parts Walter Pilot PILOT Trend Standard spray gun with gravity-feed cup

SKU: 3451-1-REP

HAN: 3451-1-rep

Category: Trend

Available

from 0,00 €

incl. 19% VAT , plus

Designation

This item has variations. Please select the requested variation.

Spare parts for Walther Pilot
PILOT Trend Standard

spray gun
with gravity-feed cup

Description

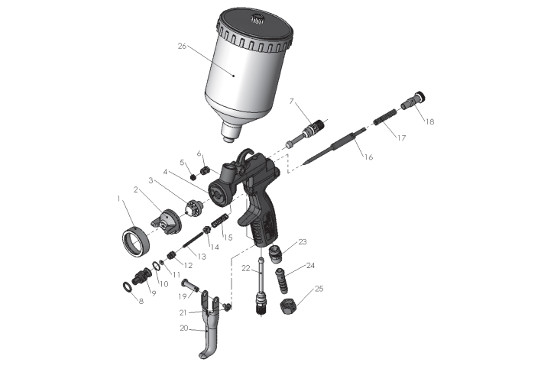

Item	Designation	Qty.	Item number
1	Air cap nut	1	V 01 101 03 000
2	Air cap	1	V 10 600 40 . . 6
3	Material nozzle	1	V 10 600 46 . . 3
4	Gun body compl.	1	V 10 600 01 000
5	Needle seal	1	V 10 600 27 000
6	Needle packing gland	1	V 10 600 12 100
7	Round/wide jet adjustment	1	V 10 600 50 000
8	O-Ring	1	V 10 600 17 100
9	Valve housing	1	V 10 600 07 100
10	O-Ring	1	V 10 600 17 200
11	O-Ring	1	V 10 600 17 500
12	Valve compression gland	1	V 10 600 14 100
13	Valve shank	1	V 10 600 15 103
14	Valve cone	1	V 10 600 08 100
15	Valve spring	1	V 10 600 18 100
16	Material needle compl	1	V 10 600 34 . . 3
17	Needle Spring	1	V 10 600 26 100
18	Spring bushing	1	V 10 600 10 100
19	Lever shank screw	1	V 10 600 20 100
20	Trigger	1	V 10 600 16 100
21	Lever screw	1	V 10 600 20 200
22	Air flow adjustment	1	V 10 600 51 000
23	Double nipple	1	V 10 600 21 100
24	Hose fitting	1	V 00 101 02 000
25	Sleeve nut	1	V 11 601 23 000
26	Trigger Shank Screw	1	V 00 101 03 000
27	Gravity-feed cup compl.	1	V 00 130 00 072

Shipping

Spare part(s) as chosen
For deliveries to non-EU countries, please contact us and send your delivery address for exact shipping quotes. Before bidding you must have a positive feedback and a confirmed address from us.
An invoice is included in every sale (exclusive VAT for export and EU intra-Community trade, inclusive VAT for DE and customers wihtout VAT ID number).
If nothing else has been agreed upon, inland deliveries and deliveries abroad are DAP (stipulated place of delivery).

Quality and Service

The offered goods are all high-grade and new.
We are an authorized WAGNER / WALTHER PILOT dealer with twenty years of experience in surface technology.
For supplying our customers with the correct spares as quickly as possible we hold a very large warehouse stock with spares.
If necessary we provide on-site fitting of the system (in Germany).
For optimal performance of the system we can provide maintenance services or we can teach you how to perform maintenance work independently.
If you need further information do not hesitate to contact us.

PDF

Trademark:	Walther Pilot
Manufacturer:	Wagner GmbH
