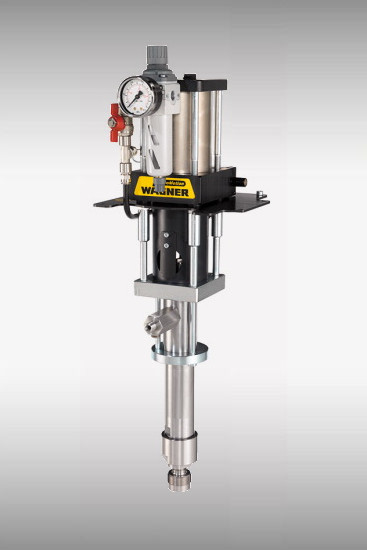

Wagner EvoMotion 20-30S PE/T piston pump

SKU: 5016

HAN: 2329452

GTIN: 0642147817549

Category: Basic Unit

Available

Price on request

Hochdruck-Kolbenpumpe, Edelstahl, für AirCoat Anwendungen bis 160 bar und 1,8 L/min. Ideal für z.B. professionelle Lackierstationen in der Einzelfertigung und Werkstattbetrieben.

WagnerEvoMotion 20-30S®
high pressure piston pump

Description

High-pressure piston pump, stainless steel, for Airless and AirCoat applications up to 135 bar and 1,8 l/ min. Ideal, for example, for professional lacquer stations in single-item production and for workshops.
The power full air motor enables constant working conditions for best coating results.

Application
areas

Wood and furniture industry
Carpentry shops and joineries
Agriculture, construction and earth moving
General metal industry
Leather coating

Processable
materials

Water and solvent-based paints
Wood coatings
Moisture-sensitive materials, isocyanates
Shear-sensitive coatings
UV-cure materials
Temperature reactive materials (acrylics, for example)
Zinc primers

Technical data

Pressure ratio	20 : 1
Air inlet pressure	2 - 8 bar
Operating pressure	135 bar
Volume per ds	30 cm³
Max. stroke frequency	60 ds/ min
Max. flow rate	1,8 l/ min
Sound pressure level at 6 bar	69 dB(A)
Weight	11 kg

Shipping conditions

1 Wagner EvoMotion 20-30S high-pressure piston pump as described.
An invoice is included in every sale. VAT depending on shipping destination (VAT free for export and intra-community EU).
Free shipment to EU countries
For deliveries to non-EU countries, please contact us and send your delivery address for exact shipping quotes. Before bidding you must have a positive feedback and a confirmed address from us.

Service

We are an authorized WAGNER and WALTHER PILOT dealer with twenty years of experience in surface technology.
The offered goods are all high-grade and new.
For supplying our customers with the correct spares as quickly as possible we hold a very large warehouse stock with spares.
If necessary we provide on-site fitting of the system (in Germany).
For optimal performance of the system we can provide maintenance services or we can teach you how to perform maintenance work independently.
If you need further information do not hesitate to contact us.

Item weight:	11,00 kg
Pump ratio:	20:1
Operating pressure:	160 bar, 2321 PSI
Volumetric flow per double stroke:	30 cm³/DH, 1,83 in³/DH
Material inlet:	AM 36x2
Material outlet:	A 1/4'' NPS
Air inlet pressure:	2,5-8,0 bar, 36-116 PSI
Material temperature:	5-80 °C, 41-176 °F
Weight:	11,0 kg, 24.3 lb
Air inlet connection:	8 mm
Max. material pressure at pump inlet:	20 bar, 290 PSI
