Wagner EvoMotion 40-15 compact PE, PTFE with valve
HAN: U6S40015HEB
Taric: 0
Art.Nr.: 5013
Available now!

Shipping time: 1 - 5 workdays

2.741,17 €

including 19% VAT., plus shipping (Spedition)

Die WAGNER EvoMotion-Pumpen sind eine attraktive Produktfamilie zur Förderung von lösemittel- und wasserbasierten Beschichtungsstoffen, sind aus Edelstahl gefertigt und für Airless und AirCoat Anwendungen bis 320 bar und 0,9 l/min geeignet.
Der direkt montierte Oberbehälter mit einem Füllvolumen von 5 l ermöglicht eine optimale Ansaugleistung auch bei dickfllüssigeren Materialien.
Für eine übersichliche und einfache Handhabung vereint das Bedienpanel alle Bedienelemente.
Das Gestell sorgt für eine maximale Stabilität des Spraypacks.


Produktdetails anzeigen

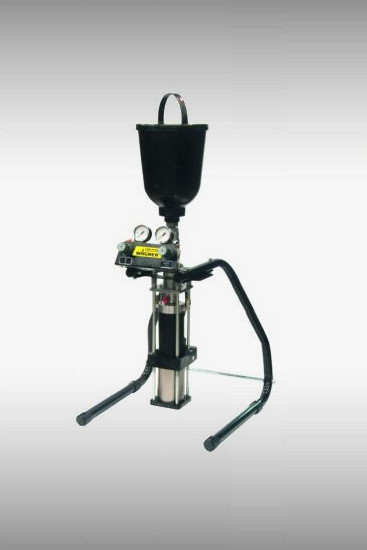

WagnerEvoMotion 40-15 compact®
high pressure piston pump


Description
  • High pressure piston pump, stainless steel, for Airless and AirCoat applications of up to 320 bar and 0,9 l/ min.
  •  The directly mounted hopper enables optimum intake, even with more viscous products.
Application
areas
  • Wood and furniture industry
  • Carpentry shops and joineries
  • Agriculture, construction and earth moving
  • General metal industry
  • Leather coating
Processable
materials
  • Water and solvent-based paints
  • Wood coatings
  • Moisture-sensitive materials, isocyanates
  • Shear-sensitive coatings
  • UV-cure materials
  • Temperature reactive materials (acrylics, for example)
  • Zinc primers
Technical data
Pressure ratio40 : 1
Air inlet pressure2,5 - 8,0 bar
Operating pressure320 bar
Volume per ds15 cm3
Max. stroke frequency60 ds/ min
Max. flow rate0,9 l/min
Sound pressure level at 6 bar74 dB(A)
Weight12,5 kg
Shipping conditions
  • 1 Wagner EvoMotion 40-15 compact high pressure piston pump as described.
  • An invoice is included in every sale. VAT depending on shipping destination (VAT free for export and intra-community EU).
  • Free shipment to EU countries
  • For deliveries to non-EU countries, please contact us and send your delivery address for exact shipping quotes. Before bidding you must have a positive feedback and a confirmed address from us.
Service
  • We are an authorized WAGNER and WALTHER PILOT dealer with twenty years of experience in surface technology.
  • The offered goods are all high-grade and new.
  • For supplying our customers with the correct spares as quickly as possible we hold a very large warehouse stock with spares.
  • If necessary we provide on-site fitting of the system (in Germany).
  • For optimal performance of the system we can provide maintenance services or we can teach you how to perform maintenance work independently.
  • If you need further information do not hesitate to contact us.

Item number5013
Manufacturer numberU6S40015HEB
Category Basic Unit
Pump ratio:40:1
Operating pressure:320 bar
Volumetric flow per double stroke:15 cm³
Air inlet pressure:2,5-8,0 bar
Weight:12,5
Sound level at
6 bar air inlet pressure:
74 dB(A
Volumetric flow per 60 double strokes:0,9 l/ min
Maximum stroke frequency:60 DH/ min
