OM70-P0600.HH0500.VI Sensores de distancia (11112064)

Número de artículo: BAU.11112064

HAN: 11112064

#global.han#: 11112064

Categoría: Medición de la tolerancia para comprobación de la precisión dimensional

1.872,23 €

incluido 19% IVA ,

Sensores de distancia

no description available

Datos técnicos

Datos generales
Type	Distance measuring
Version	OM70 laser point basic

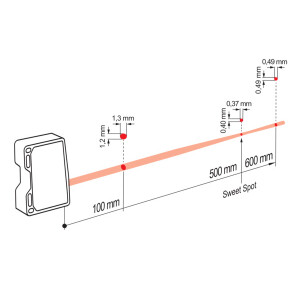

Measuring distance Sd	100 … 600 mm
Measuring range Mr	500 mm
Sweet spot	500 mm
Adjustment	Touch Display, RS485
Power on indication	LED green
Output indicator	LED yellow / LED red
Resolution	3 … 24 µm
Repeat accuracy	1 … 9 µm
Linearity error	± 0,12 % Mr
Beam type	Point
Temperature drift	0,04 % Sde/K
Hysteresis digital output	Adjustable

Light source	Pulsed red laser diode
Wave length	660 nm
Laser class	1
Datos eléctricos
Response delay	0,8 ms
Measuring frequency	2500 Hz
Voltage supply range +Vs	15 … 28 VDC
Current consumption max. (no load)	75 mA
Output circuit	Analog and RS 485
Output signal	4 ... 20 mA / 0 ... 10 VDC
Output current	100 mA
Switching output	Push-pull
Short circuit protection	Yes
Reverse polarity protection	Yes, Vs to GND

Interface	RS485
Baud rate	115200, adjustable

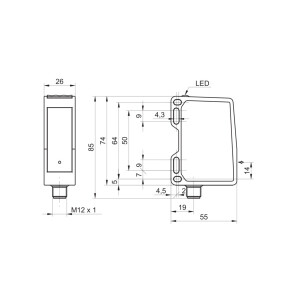

Datos mecánicos
Width / diameter	26 mm
Height / length	74 mm
Depth	55 mm
Design	Rectangular, front view
Housing material	Aluminum
Front (optics)	Glass
Connection types	Connector M12 8 pin
Weight	130 g
Condiciones ambientales
Ambient light immunity	< 300 kLux
Protection class	IP 67
Operating temperature	-10 … +50 °C
Vibration (sinusoidal)	IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
Shock (semi-sinusoidal)	IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction

#productDetails.itemInformation#	#productDetails.itemValue#
Ejecución:	OM70 laser point basic
Type:	Distance measuring
Precisión de repetición:	1 … 9 µm
NULL:	3 … 24 µm
Beam type:	Point
Power on indication:	LED green
Output indicator:	LED yellow / LED red
Temperature drift:	0,04 % Sde/K
Measuring distance Sd:	100 … 600 mm
Ajuste:	Touch Display, RS485
Measurement range MR:	500 mm
Linearity error:	± 0,12 % Mr
Sweet spot:	500 mm
Hysteresis digital output:	Adjustable
