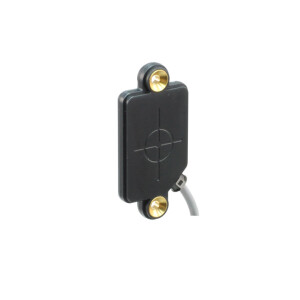

CFDK 25G3125/LN6 Capacitive proximity sensors (11092585)

SKU: BAU.11092585

HAN: 11092585

Category: Sensors in a plastic housing

134,95 €

incl. 19% VAT , plus

Manufacturers:

Capacitive proximity sensors

Technical data

General data
Nominal sensing distance Sn	15 mm
Mounting type	Non-flush
GND electrode	No
Temperature drift	± 20 % (0 ... +75 °C) ± 30 % (-25 ... 0 °C)
Sensitivity adjustment	No
Output indicator	LED red
Measurement type	Contactless
Field of application
Detection of non-conductive media	Yes
Fill level detection through container	No
Liquids in direct contact	No
Object detection / bulk goods	Yes
Electrical data
Voltage supply range +Vs	10 … 30 VDC
Current consumption max. (no load)	15 mA
Output function	Active low
Output circuit	Push-pull
Output current	100 mA
Voltage drop Vd	<3 VDC
Switching frequency	35 Hz
Short circuit protection	Yes
Reverse polarity protection	Yes
Mechanical data
Design	Rectangular
Housing material	PA 12
Dimension	25 mm
Housing length	52.4 mm
Depth	6 mm
Connection types	Cable PVC 3 x 0,14, 2 m
Ambient conditions
Operating temperature	-25 … +75 °C
Protection class	IP 65
