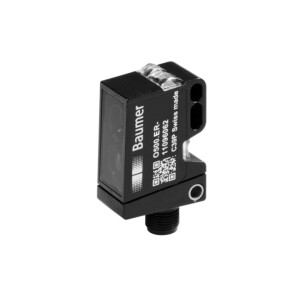

O500.ER-PV1T.72O Through beam sensors (11128075)

SKU: BAU.11128075

HAN: 11128075

Category: For Long ranges

67,00 €

incl. 19% VAT , plus

Manufacturers:

Through beam sensors

no description available

Technical data

General data
Type	Through beam sensor
Emitter / receiver	Receiver
Actual range Sb	25 m
Nominal range Sn	40 m
Alignment / soiled lens indicator	Flashing light indicator
Light indicator	LED yellow
Power on indication	LED green
Sensitivity adjustment	qTeach
Alignment optical axis	< 1°
Electrical data
Response time / release time	< 0.49 ms
Voltage supply range +Vs	10 … 30 VDC
Current consumption max. (no load)	40 mA
Current consumption typ.	30 mA
Voltage drop Vd	<3 VDC
Output function	Light / dark operate
Output circuit	PNP complementary
Output current	100 mA
Short circuit protection	Yes
Reverse polarity protection	Yes
Mechanical data
Width / diameter	18 mm
Height / length	45 mm
Depth	32 mm
Design	Rectangular
Housing material	Plastic (ASA, PMMA)
Front (optics)	PMMA
Connection types	Connector M12 4 pin
Ambient conditions
Operating temperature	-25 … +60 °C
Protection class	IP 67
