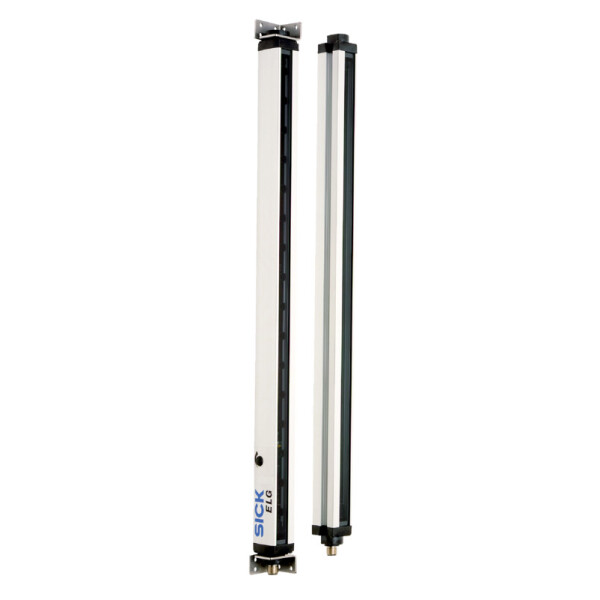

SICK Automation light grids ELG ELG3-0810P523 (1026177)

SICK Automation light grids ELG ELG3-0810P523 (1026177)

SKU: SIC.1026177

HAN: 1026177

Category: ELG

Low stock level

1.118,06 €

incl. 19% VAT ,

Manufacturers:

Sick

Features

Sensor principle	Sender/receiver
Minimum detectable object (MDO)	20 mm ¹⁾
Beam separation	30 mm
Number of beams	28
Detection height	810 mm
Evaluation beams	Cross beam

Mechanics/electronics

Wave length	880 nm
Supply voltage V_s	DC 15 V ... 30 V ¹⁾
Power consumption sender	< 100 mA ¹⁾
Power consumption receiver	< 100 mA ¹⁾
Ripple	< 5 V_pp
Output current I_max.	= 100 mA
Output load, capacitive	100 nF
Output load, Inductive	1 H
Initialization time	1 s
Switching output	2 x PNP ²⁾
Output mode	Q dark switching ³⁾
Dimensions (W x H x D)	34 mm x 886 mm x 29 mm
Connection type	Male connector M12, 4-pin
Housing material	Aluminum
Indication	LED
Synchronization	Optical
Enclosure rating	IP65 ⁴⁾
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	2,400 g
Pulse frequency	250 kHz
Front screen	PMMA

Performance

Maximum range	17 m
Minimum range	= 500 mm
Operating range	12 m
Response time	300 ms ¹⁾

Ambient data

Shock resistance	10 g / DIN EN 60068-2-29 / 16 ms
Vibration resistance	5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
EMC	EN 60947-5-2
Ambient light immunity	Indirect: = 150,000 lx ¹⁾
Ambient operating temperature	–25 °C ... +55 °C
Ambient temperature, storage	–40 °C ... +70 °C

Certificates

EU declaration of conformity	?
UK declaration of conformity	?
ACMA declaration of conformity	?
Moroccan declaration of conformity	?
China-RoHS	?

Classifications

ECLASS 5.0	27270910
ECLASS 5.1.4	27270910
ECLASS 6.0	27270910
ECLASS 6.2	27270910
ECLASS 7.0	27270910
ECLASS 8.0	27270910
ECLASS 8.1	27270910
ECLASS 9.0	27270910
ECLASS 10.0	27270910
ECLASS 11.0	27270910
ECLASS 12.0	27270910
ETIM 5.0	EC002549
ETIM 6.0	EC002549
ETIM 7.0	EC002549
ETIM 8.0	EC002549
UNSPSC 16.0901	39121528

Item information	Value
Connection type:	NULL
Operating range:	12 m
Beam separation:	30 mm
Detection height:	810 mm
Response time:	300 ms
Item weight:	1.293,00 kg
