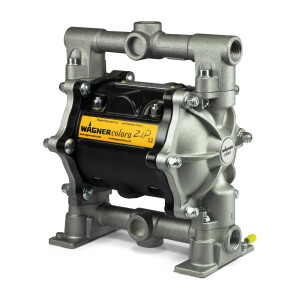

The WAGNER ZIP 52 is a pneumatic double diaphragm pump for material supply in finishing shops: up to 52 l/min at 8 bar, light, low-maintenance and available in four materials. This page brings together everything for the series – the pumps themselves, every spare part from operating manual 2330425 and the matching accessories.
What the ZIP 52 is built for
An air-operated double diaphragm pump works without seals on moving parts in the fluid: two diaphragms alternately draw in and displace, and four ball valves set the direction. This makes the ZIP 52 gentle on shear-sensitive coatings and robust in continuous operation. WAGNER recommends it for water-borne and solvent-borne coatings, 2K materials, UV coatings and primers – in furniture and window making, joinery, steel processing and vehicle construction. An overview of every version is on ZIP 52 double diaphragm pumps.
Four materials for different coatings
The most common choice is the aluminium pump; for more demanding media there is the stainless steel pump. The polypropylene pump is non-conductive and intended for non-flammable materials only, while the conductive acetal pump is approved for zone 1 despite its plastic body. The PF versions (Perfect Flow) deliver with a shorter stroke and particularly low pulsation.
Spare parts by pump type

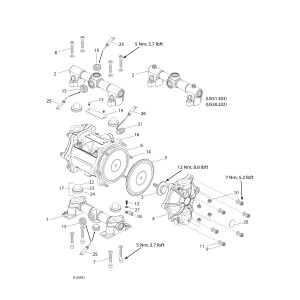

The operating manual has a separate spare parts list for each pump type, and the spare parts for the ZIP 52 are organised the same way. The largest groups are spare parts for the metal pump with universal connections and spare parts for the polypropylene pump with universal connections; drive parts are under air motor spare parts. Every part carries the position number of the exploded view.
Accessories and maintenance
Pressure regulators, gauges, suction hose, suction filter and wall bracket are listed under accessories for the ZIP 52. For scheduled replacement of diaphragms, valves and O-rings there are the service sets for the ZIP 52, which let you overhaul a pump in one go.
Where this fits in our range
The ZIP 52 belongs to the low-pressure diaphragm pumps – for higher pressures, WAGNER’s high-pressure pumps are the right choice. The manufacturer’s complete programme with guns, pumps and powder equipment is on the WAGNER GmbH page.
Your benefits when buying from us
- Wide WAGNER range: over 140 items for the ZIP 52 alone
- Spare parts with position number and exploded view as product image
- Technical data from the operating manual in every item
- Advice from application engineers, not a call centre
- Fast shipping by UPS or freight forwarder, express on request
- Customs tariff number and country of origin stored for every item
